200W 5V 40A Switching Power Supply with PFC Function - Ideal for LED Strips, CCTV Systems, and Industrial Equipment Power Supply
$55.3
$100.56
Safe 45%
200W 5V 40A Switching Power Supply with PFC Function - Ideal for LED Strips, CCTV Systems, and Industrial Equipment Power Supply
$55.3
$100.56
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
11 people viewing this product right now!
SKU: 27491101
Guranteed safe checkout
Description

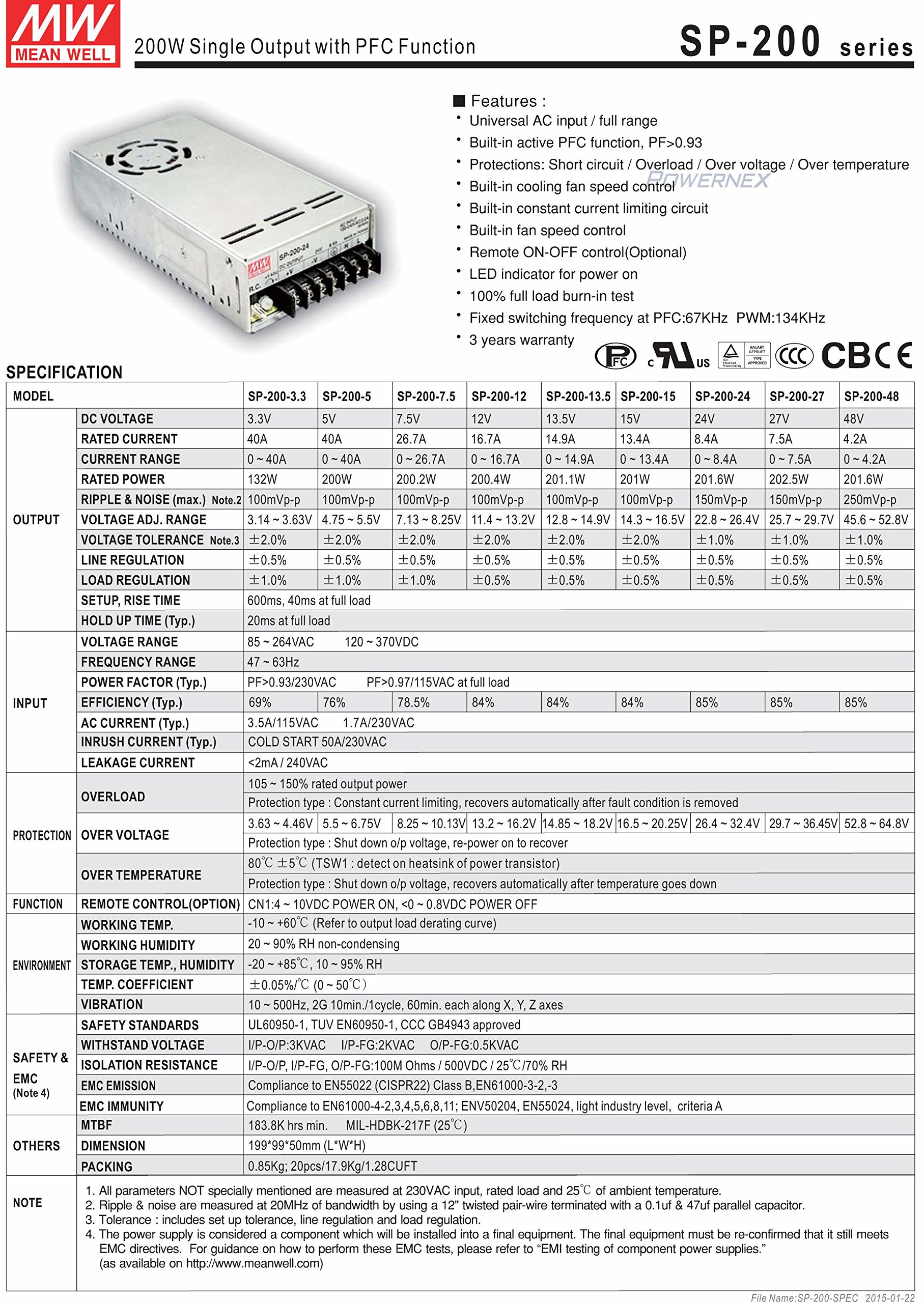

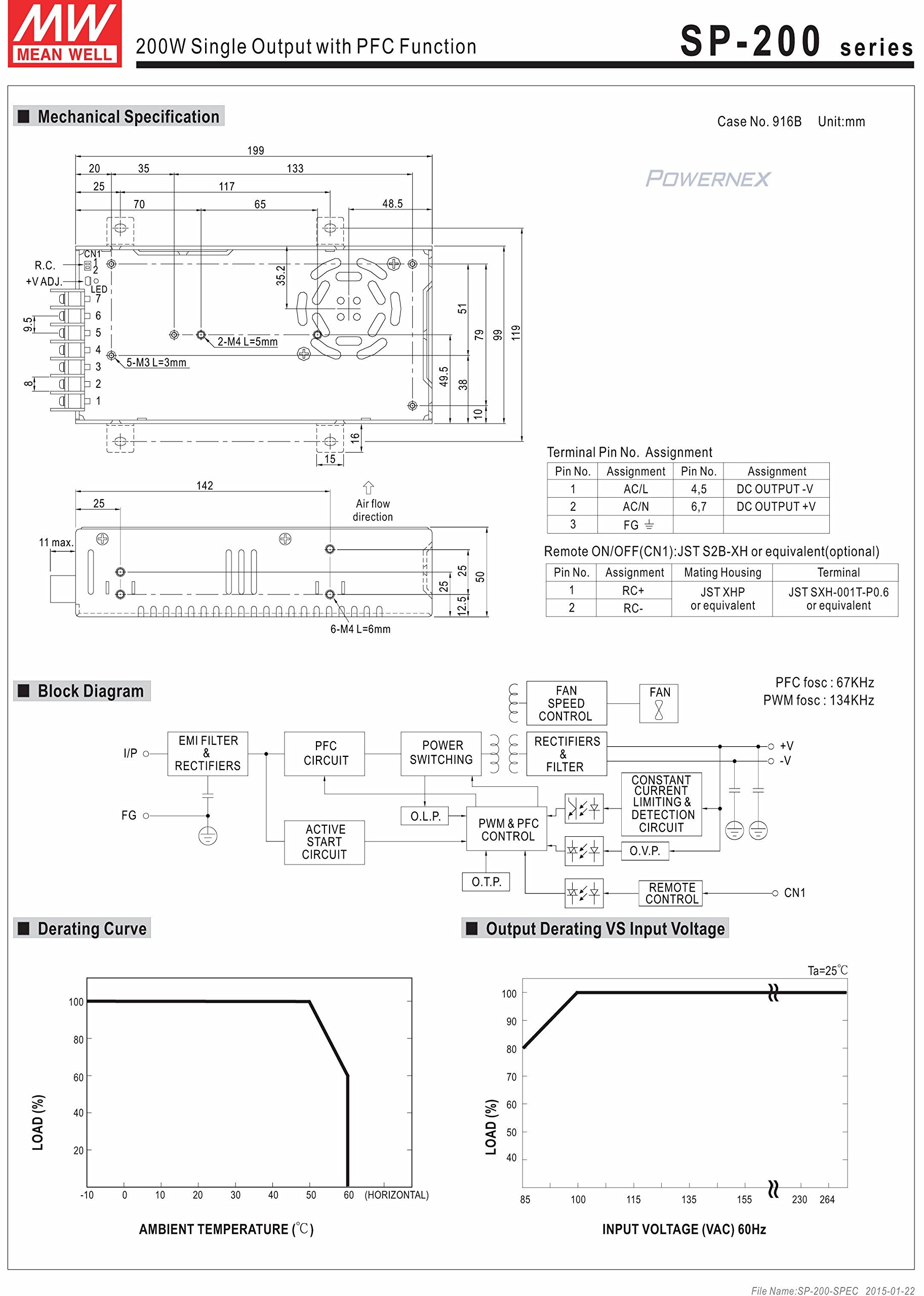

Features:Universal AC input / Full rangeBuilt-in active PFC functionProtections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC fanOptional remote ON/OFF control100% full load burn-in testBuilt-in fan speed control3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)AC input voltage range:85~264VAC; 120~370VDCAC inrush current (max.):Cold start, 50A at 230VACDC adjustment range:-5%~+10% rated output voltageOverload protection Range:105%~150%Overload protection Type:Constant current limiting, auto-recoveryOver voltage protection Range:110%~135%Over voltage protection Type:Shut off, AC recycle to re-startWithstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minuteWorking temperature:-10~+60°CSafety standards:UL60950-1, TUV EN60950-1,EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3Connection:7P / 9.5mm pitch terminal block with coverDimension (LxWxH):199x 99x50Case No.:916BPacking:20pcs/17.9kg
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Features
Output Voltage 5V
Approx. Wattage 200W
Protections Short circuit / Overload / Over voltage / Over temperature
Warranty 3 Years Warranty
